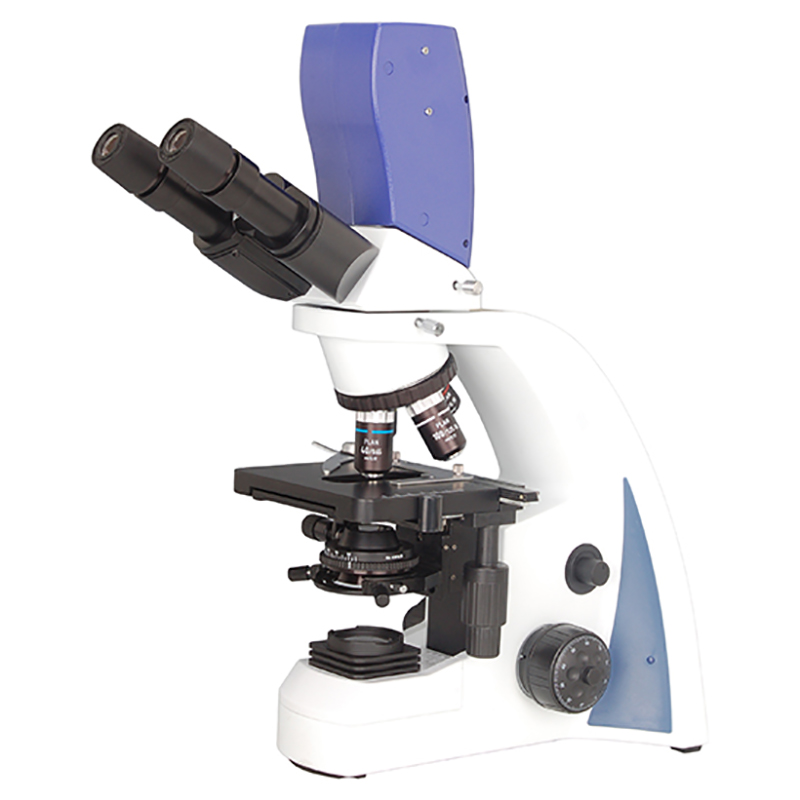

BS-2040BD Biological Digital Microscope
BS-2040BD
Introduction
BS-2040BD microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.
Feature
1. Infinite Optical System.
2. Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment is optional.
3. Sliding-in Centerable Condenser.
4. Easy carrying Handle.
5. BS-2040BD support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish).
6. BS-2040BD support Windows Vista / Win 7 / Win8 / Win 10 Operation System. The software can preview, take photos and video, do image processing and measurement.
Application
BS-2040BD microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
Specification
| Item | Specification | BS-2040BD |
| Optical System | Infinite Optical System |
● |
| Viewing Head | Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm | |
| Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm | ||
| Built-in 3.0MP digital camera with ScopeImage 9.0 Software; Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm |
● |
|
| Eyepiece | Wide Field Eyepiece WF 10×/18mm |
● |
| Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment |
○ |
|
| Objective | Infinite Semi-plan Achromatic Objectives 4×, 10×, 40×, 100× |
● |
| Infinite Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100× |
○ |
|
| Nosepiece | Backward Quadruple Nosepiece |
● |
| Backward Quintuple Nosepiece |
○ |
|
| Stage | Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm |
● |
| Left hand operation Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm |
○ |
|
| Condenser | Sliding-in Centerable Condenser NA1.25 |
● |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
● |
| Illumination | 1W S-LED Lamp, Brightness Adjustable |
● |
| 6V/20W Halogen Lamp, Brightness Adjustable |
○ |
|
| Optional accessories | Phase Contrast Kit |
○ |
| Dark Field Attachment |
○ |
|
| YX-2 Epi-fluorescent Attachment |
○ |
|
| FL-LED Epi-fluorescent Attachment |
○ |
|
| Package | 1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg |
● |
Note: ● Standard Outfit, ○ Optional
